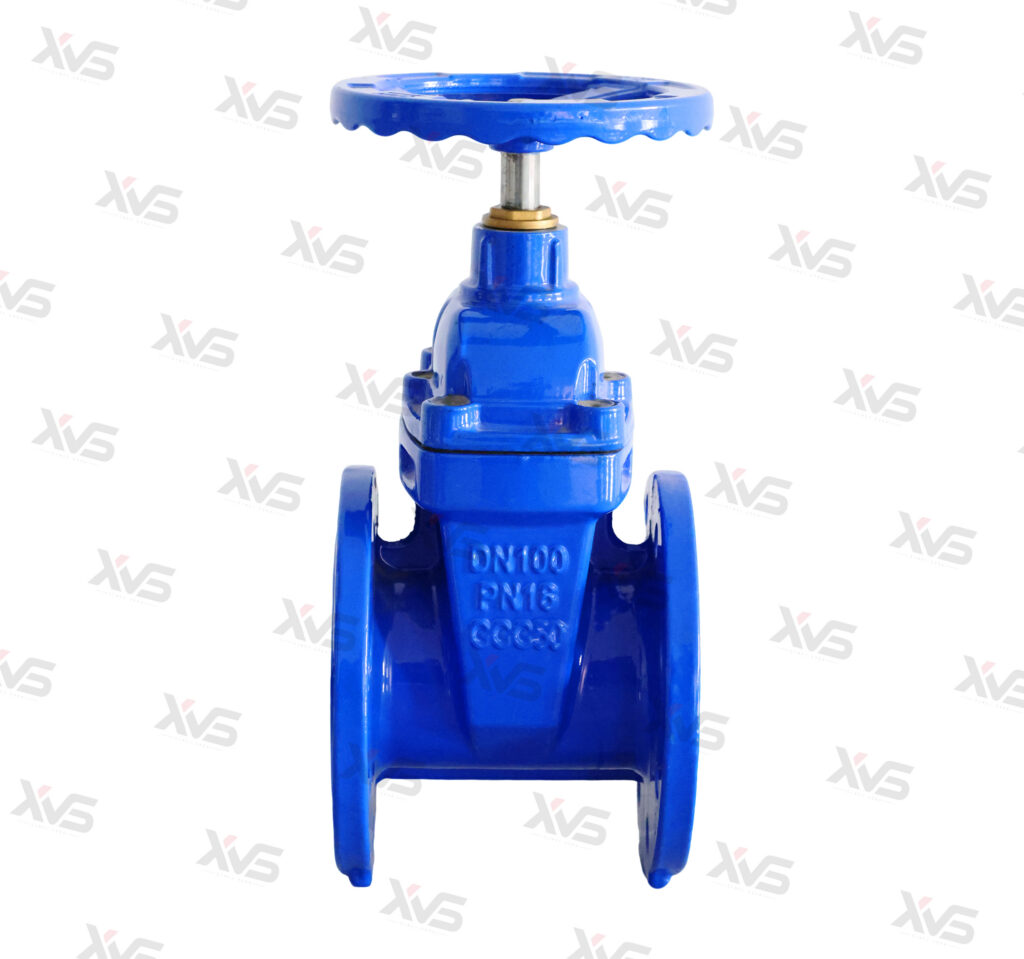

DIN 3352 F4 Resilient Seated Gate Valve with Brass Nut
flanged
PN10 / PN16 / PN25 / Class 125/150 / Class 150 / Class 300
GGG50
DN40-DN300
Customized Components Supported
Professional OEM/ODM services for valve components. We manufacture according to your technical drawings and material requirements with high precision.

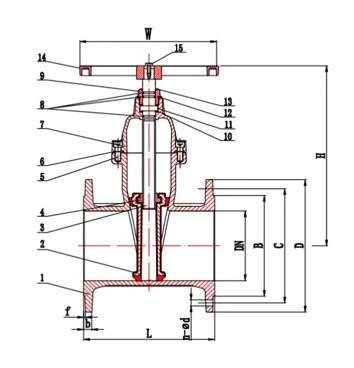

Technical Drawing
⊕ Click to Enlarge
Dimensions & Tolerance
| DN | L | D | C | B | n-d | b | f | W | H | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | / | |||||
| DN40 | 140 | 150 | 110 | 84 | 4-19 | 18 | 3 | 160 | 190 | ||||
| DN50 | 150 | 165 | 125 | 99 | 4-19 | 19 | 3 | 160 | 205 | ||||
| DN65 | 170 | 185 | 145 | 119 | 4-19 | 19 | 3 | 160 | 225 | ||||
| DN80 | 180 | 200 | 160 | 133 | 4-19 | 8-19 | 19 | 3 | 180 | 250 | |||
| DN100 | 190 | 220 | 180 | 154 | 8-19 | 19 | 3 | 200 | 285 | ||||
| DN125 | 200 | 250 | 210 | 184 | 8-19 | 19 | 3 | 250 | 330 | ||||
| DN150 | 210 | 285 | 240 | 210 | 8-23 | 19 | 3 | 250 | 375 | ||||
| DN200 | 230 | 340 | 295 | 265 | 8-23 | 12-23 | 20 | 3 | 300 | 480 | |||
| DN250 | 250 | 405 | 350 | 355 | 319 | 12-23 | 12-28 | 22 | 3 | 330 | 590 | ||
| DN300 | 270 | 460 | 400 | 410 | 370 | 12-23 | 12-28 | 24.5 | 4 | 380 | 650 | ||
